LNG – Developed for industrial high-power diode lasers

Pulsed power supply with 17 kW output power and extremely low rise-time

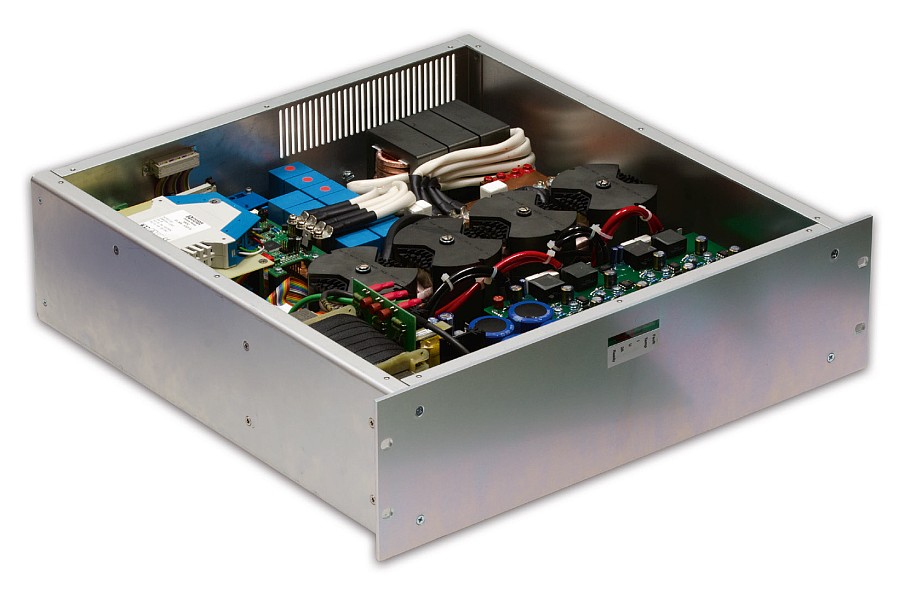

Developed for laser technology: the LNG is a pulsed switched-mode power supply in a 19" housing with up to 17 kW peak power. The challenge in this design was the very short rise time (less than 80µs possible) with very little overshoot.
With possible modifications, the power supply can also be used in many other industrial areas where pulsed output power with high switching frequency is needed.

As all RSG customized developments, the power supply is produced exclusively in Germany using high-quality components and materials. Reliability and quality Made in Germany!

Key Features:

  • Input voltage: 3-phase 380-528VAC, 47-63Hz
  • Output voltage: adjustable from 18-70VDC, output current 250ADC max.
  • Isolation voltage I/O: 3kVAC
  • Input filter: according to EN55022 Level A
  • Water-cooled cold plate
